Description
https://www.xizi-ec.com/JC-4C96E2-Center-Open-Four-Panel-Door-System.html

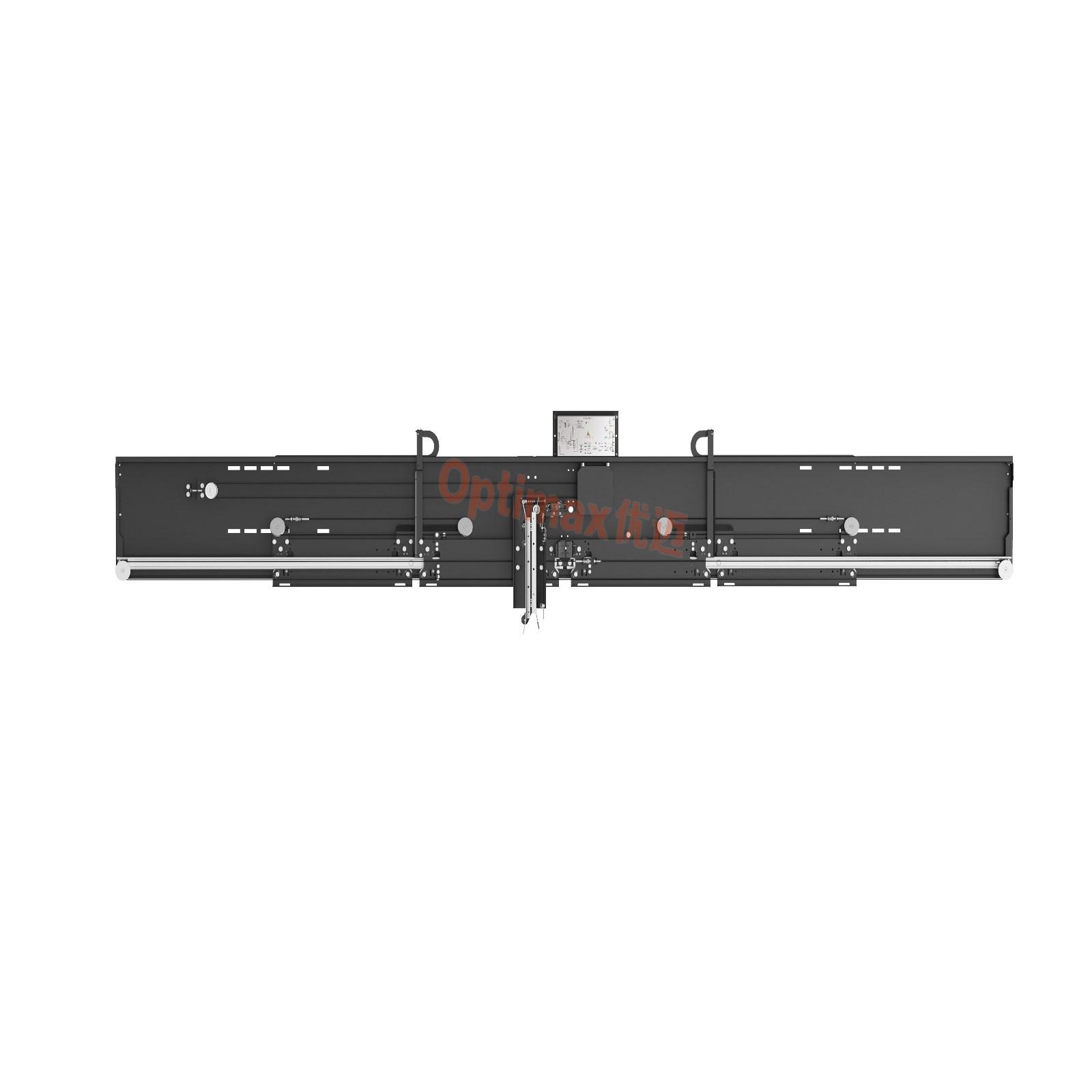

This product is a door driving system subject to permanent-magnetic synchronous motor driving and stepless speed regulation VF control. It is easy for installation and debugging and reliable in operation. Its most important advantage is that the structure is very compact, which brings high use ratio of hoistway. This product is widely used in passenger elevator and freight elevator.
Data Sheet Unit：mm
|
OP(Clear Opening Width) |
1200 |
1300 |
1400 |
1500 |
1600 |
1700 |
1800 |
1900 |
2000 |
2100 |
2200 |
2300 |
2400 |
2500 |
2600 |
2700 |
2800 |
2900 |
3000 |
|
L |
1873 |
2023 |
2173 |
2323 |
2473 |
2623 |
2773 |
2923 |
3073 |
3223 |
3373 |
3523 |
3673 |
3823 |
3973 |
4123 |
4273 |
4423 |
4573 |
|
C |
As per Request |
||||||||||||||||||
|
K1 |
Default Value：100,or As per Request |
||||||||||||||||||
|
SW |
Default Value：180,or As per Request |
||||||||||||||||||
|
HS |
Default Value：OPH+505 |
||||||||||||||||||
|
Door Vane Structure |
Integrated Door Lock Synchronous Door Cam, Effective length of door cam 320mm |
||||||||||||||||||
|
Installation Mode |
Straight Beam Installation Mode(Standard)/Car Top Installation Mode(Optional) |
||||||||||||||||||
